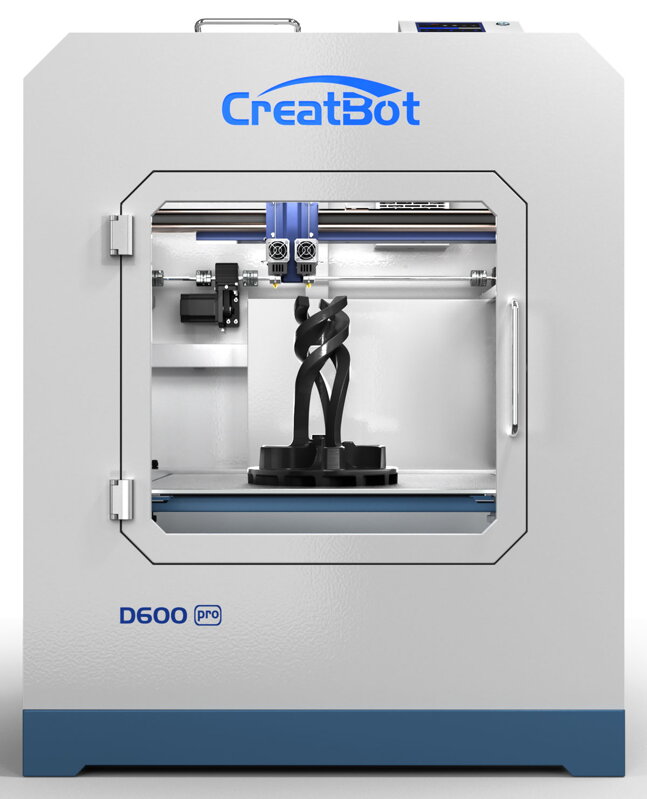

CreatBot D600 Pro

NOVINKA

3D print with the CreatBot D600 Pro very large and complex parts and objects. The D600 Pro is an industrial high temperature 3D printer with a very high manufacturing quality and enormously large heated installation space (60x60x60 cm). Use it to produce high-quality and sophisticated components additive. Main features of the CreatBot D600 Pro 3D printer:Extruder heatable to 260°C hotend(left) and 420°C hotend(right), heated construction platform and construction chamber heated to 70 ° C – Minimized warpingExtremely large installation space of 600x600x600 mm & industrial extruder guide for optimum qualitySimple control via 4.3" touch display & warm filament drying chamberSet 3D prints after a power outage easily – save costs, time and nerves Čítajte viac

Vypredané

11118,27 €

Popis

Industrial 3D printer CreatBot D600 Pro – 3D print very large and complex parts and objects

3D print with the CreatBot D600 Pro very large and complex parts and objects. The D600 Pro is an industrial high temperature 3D printer with a very high manufacturing quality and enormously large heated installation space (60x60x60 cm). The all-metal frame always offers you smooth running, precise linear guidance of the extruder and enormous noise reduction. Control the 3D printer comfortably and intuitively via the touch display and rely on reliably good production results thanks to BuildTak adhesives, heated building platform and heated filament drying chamber.

CreatBot D600 Pro improvements over D600

  • 25 control points check the setting of the building platform and level it automatically
  • Precise linear guide rail for stable and smooth running
  • Power failure protection automatically remembers the last position and continues 3D printing
  • Heated building platform made of glass and BuildTak adhesives
  • Easy control via the 4.3-inch touch screen
  • Construction chamber heated to 70 degrees minimizes warping
  • Filament drying chamber for nylon and other hydrophilic filaments

More features of the CreatBot D600 Pro:

  • Manufacturing temperature up to 260°C hotend(left) and 420°C hotend(right)
  • High precision 3D printing – up to 0.05 mm
  • Stable installation space made of steel guarantees reliable results
  • Very large installation space of 600 x 600 x 600 mm
  • Completely enclosed construction chamber for stable temperatures and noise reduction
  • Perfect for additive production with high-performance thermoplastics

Extruder temperature up to 420 °C

CreatBot is among the first to release a 420 °C ultra-high-temperature nozzle for the mass market. Furthermore, CreatBot owns exclusive innovative patents. The high temperature extruder allows you to process a wide range of filaments. The optimized blue cooling fins cool the heat brake reliably and efficiently. This keeps the heat from the hot end away from the extruder unit. You can also fine tune the nozzle height for maximum precession. It is possible to use custom designs for single, double and triple heads.

High 3D printing precision

The high precision of the 3D prints is made possible by the constant research and development of the extruder feed system. With this system you can achieve high resolutions of up to 0.05 mm. In addition, it enables consistent material extrusion without the dreaded clogging of the nozzle. Precision up to: 0.05 mm Production speed up to: 200mm/s

Stability of steel frame

The all-metal steel frame provides high and continuous stability for 3D printing. In addition, it considerably extends the product life cycle of the 3D printer. The optimization and cooperation of the overall structure ensures sustainable and efficient operation. In the meantime, the first series of CreatBot 3D printers has been working continuously and reliably for more than 5 years and more than 8000 hours.

Large installation space

The CreatBot D600 Pro is a true industrial 3D printer. 3D print with it extremely large objects and components of up to 600*600*600 mm. Its installation space is 30 times larger than any other ordinary 3D printer in today's mass market.

CreatBot D600 – Very large build size: 600*600*600 mm

Completely closed construction chamber

The fully enclosed building chamber keeps all environmental influences away from your 3D prints. This minimizes warping and keeps moisture out. So you can 3D print without worries. Furthermore, the closed design reduces noise and keeps the building temperature constant.

Automatic levelling of the building platform – Optimum setting

Control the CreatBot D600 Pro and automatically level its building platform. Over 25 measuring points, the BL sensor measures the distance between the building platform and the extruder unit. It stores the individual distances at the different points of the platform. Based on this information, this 3D printer automatically compensates for any unevenness.

Precise linear guide rail

Thanks to the precise linear rail structure you can 3D print models with a very high accuracy. Finish with 4 to 5 times more accuracy additive than ordinary mass market 3D printers. This rugged industrial design delivers superior smoothness and accurate filament feed. Produce large and complex models perfectly and reliably with the CreatBot D600 Pro 3D printer.

Power Failure & Filament Recognition

The CreatBot D600 Pro 3D printer automatically saves the current position and status of your 3D prints. It lowers the building platform and extends the filament when the machine is suddenly turned off or the power fails. This means you can 3D print many hours of 3D reliably and repeatedly. Gone are the days when you wasted your time, filament and money on aborted 3D prints.

Efficient building platform – Good material adhesion & warping minimized

The surface of the building platform is coated with BuildTak. Your 3D print adheres reliably to this coating. The build platform conducts and distributes heat evenly and quickly. 3D prints with high thermal efficiency. Choose the setting parameters so that your D600 Plus switches off the heating of the lower layers after a few layers.

Intuitive touch screen operation

Control this 3D printer from its easy-to-use 4.3" touch screen. One-key command heats the D600 Pro, starts production jobs and moves the extruder head to the home position. In addition, there are many other intelligent setting options waiting for you.

Additional innovative features of the CreatBot D600 Pro

Compared to its predecessor, the CreatBot D600 Pro has many smart and innovative features.

Heated installation space – 70 °C Pro minimize warping

Due to the actively heated installation space, the CreatBot D600 Pro guarantees a constant installation space temperature. Make sure your model doesn't deform during 3D printing – warping is a thing of the past.

Dry and heated storage room for your filament

Store your hydrophilic filament in a dry and heated storage room. This guarantees you a top workmanship of water absorbing materials such as nylon or PC. To minimize water absorption, set the chamber temperature between 45°C and 65°C. Keep your filaments dry!

High quality filament

Process the original CreatBot filaments or PrimaCreator's high quality and affordable alternatives.

3D print these materials on the CreatBot D600 Pro:

  • PLA
  • ABS
  • Carbon Fiber
  • Wood
  • Nylon
  • PC
  • PTEG
  • HIPS
  • PP
  • Flexible
  • TPU
  • PVA and more

Use cases

Realize large and complex components with the CreatBot D600 Pro. The following models were commissioned by the cultural heritage organisation. They are 3D-printed on the D600 Pro with a 5 kg PLA roll within 80 hours. All 3D prints come out of the 3D printer as shown and do not need to be reworked.

Buy the industrial 3D printer CreatBot D600 Pro and Additive Manufacture very large and complex parts and objects.



Construction an Technical Details
Usable Nozzle Type MK8
Usable Filament Diameter 1.75 mm
Max Nozzle Temperature 420 ºC
Open Filament System Yes
Extruder Type Direct drive
Recommended Printing Speed Max 120 mm/s ( Build Area 600 mm x 600 mm x 600 mm Dual Build Area 600 mm x 600 mm x 600 mm Build Plate Temp Max 100 ºC Build Plate Material Aluminum plate Build Plate Attachment fixed Build Plate Leveling System mechanical switch Build Chamber During Process Open or Closed Build Chamber Heated Yes, max 70°C Filament Chamber Closed Yes
Extruder Number Of 2
Extruder Construction Type Dual Dual Head fixed height, manual adjustable

Installation Space / Requirements
Total Mass Overall Dimensions 905 mm x 915 mm x 1226 mm
Total Weight 125 kg
Ambient Operating Temperature 15°C - 32°C
Max Power Consumption 4000 W
Voltage AC: 220 V - 230 V (50-60 Hz)

Equipment
Hepa Filter Yes
Filament Runout Sensor Yes
Power Loss Fail Safe Yes
Touch Screen Yes

Connection
USB Port Yes
WLAN No

Accuracy
Layer Height 0.05 - 0.6 mm
Resolution 0.05 mm

Shipping
Shipping Box 1030 mm x 1000 mm x 1360 mm
Shipping Weight 190 kg
